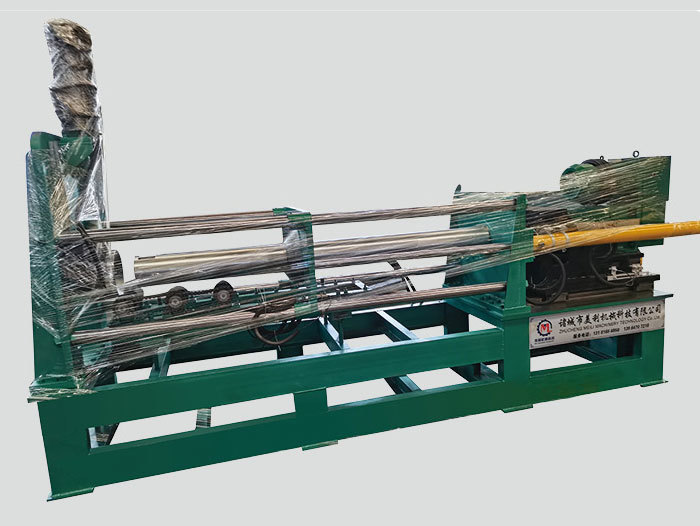

Keywords： MGD40 Steel Cylinder Bottom Scraper
Category： Products
Whatsapp：8619053621740
Email：admin@meilijixie.com.cn
The cylinder bottom scraper is a special equipment for cleaning the bottom of the cylinder. It is mainly used to clean the steel nodules, slag, and oxide scale left in the inner wall of the cylinder bottom due to high-temperature closing, so as to make the cylinder bottom smooth and clean, so as to improve the overall quality of the cylinder.
| Name | Description | Composition | Technical Parameters |
| MGD40 Steel Cylinder bottom scraper | MGD40 steel cylinder bottom scraper is a new type of equipment for cleaning the bottom of steel cylinders independently developed by our company. It is a special equipment for cleaning various types of steel cylinders and other workpieces. It is mainly used to clean the steel nodules, steel slag, oxide scale, etc. on the inner wall of the bottom of the steel cylinder due to high temperature. This machine is specially used to clean the steel nodules, steel slag, oxide scale and other chips on the inner wall of the bottom of the steel cylinder, keep the bottom of the cylinder smooth and tidy, and thus improve the overall quality of the steel cylinder. | MGD40 cylinder bottom scraper is mainly composed of power head, feeding mechanism, clamping mechanism, roller lifting device, electronic control system, cutting tool, etc. | Workpiece diameter: Φ219-Φ406 mm Workpiece length: 800-2000 mm Maximum scraping diameter: φ75 mm Power head motor: Power 5.5kw Tool bar speed: 100 r/min Feeding method: Stepper motor CNC feeding Equipment power: 7kW |
