Keywords： Steel cylinder outer wall shot blasting cleaning machine
Category： Products
Whatsapp：8619053621740
Email：admin@meilijixie.com.cn
| Name | Description | Composition | Technical Parameters |

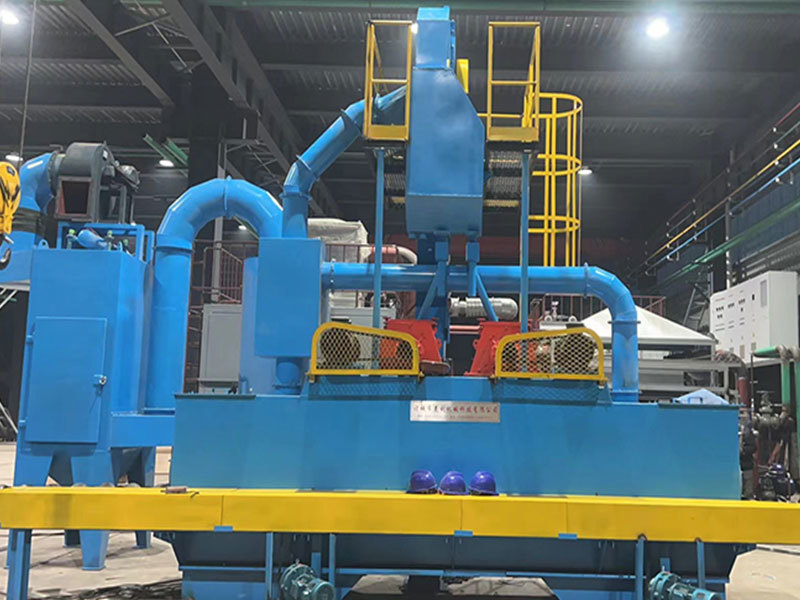

| QGW480 Cylinder outer wall shot blasting cleaning machine） | QGW480 cylinder outer wall shot blasting machine is a new type of roller type cylinder outer wall shot blasting equipment independently developed on the basis of the original equipment. It is a special cleaning equipment for shot blasting natural gas cylinders and other workpieces. Through shot blasting, not only can the oxide scale, rust and other impurities on the surface of the workpiece be removed, but also the internal residual stress of the workpiece can be eliminated, the fatigue strength and other internal qualities of the workpiece can be improved, the specified requirements can be met, defects such as stress corrosion can be prevented, and ultimately the purpose of improving the surface and internal quality of the entire workpiece can be achieved. | QGW480 cylinder outer wall shot blasting machine is mainly composed of shot blasting cleaning chamber and front and rear sealing chambers, shot blasting machine assembly, elevator, separator, screw conveyor system, roller system, auxiliary mechanism, shot control system, dust removal system, air control system, electronic control system, etc. | Workpiece size: diameter*length: Φ89-Φ480*700-3200 mm Production cycle: 1-4 m/min Shot addition amount: ~3t Roller speed: 3~6 r/min Shot circulation: 45 t/h Equipment power: ~70 kW |
| QGW60 Cylinder outer wall shot blasting cleaning machine | QGW60 cylinder outer wall shot blasting machine is a new type of roller-type cylinder outer wall shot blasting equipment independently developed on the basis of the original equipment, which is specially used for automobile cylinder shot blasting. Through shot blasting, not only can the oxide scale, rust and other impurities on the surface of the workpiece be removed, but also the internal residual stress of the workpiece can be eliminated, the fatigue strength and other internal qualities of the workpiece can be improved, the specified requirements can be met, defects such as stress corrosion can be prevented, and finally the purpose of improving the surface and internal quality of the entire workpiece can be achieved. | QGW60 cylinder outer wall shot blasting machine is mainly composed of shot blasting cleaning chamber and front and rear sealing chambers, shot blasting machine assembly, elevator, separator, screw conveyor system, roller system, auxiliary mechanism, shot control system, dust removal system, air control system, electronic control system, etc. | Workpiece size: diameter*length: Φ406-Φ660*2500-12000mm Production cycle: 1-4 m/min Shot addition amount: ~4t Roller speed: 3~6 r/min Shot circulation: 60 t/h Equipment power: ~82 kW |
