Keywords：Roller pass shot blasting machine
Category： Products
Whatsapp：8619053621740
Email：admin@meilijixie.com.cn
| Name | Description | Composition | Technical Parameters |

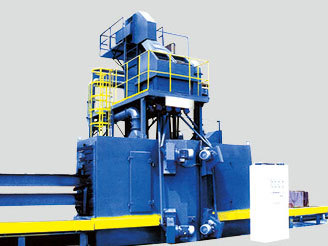

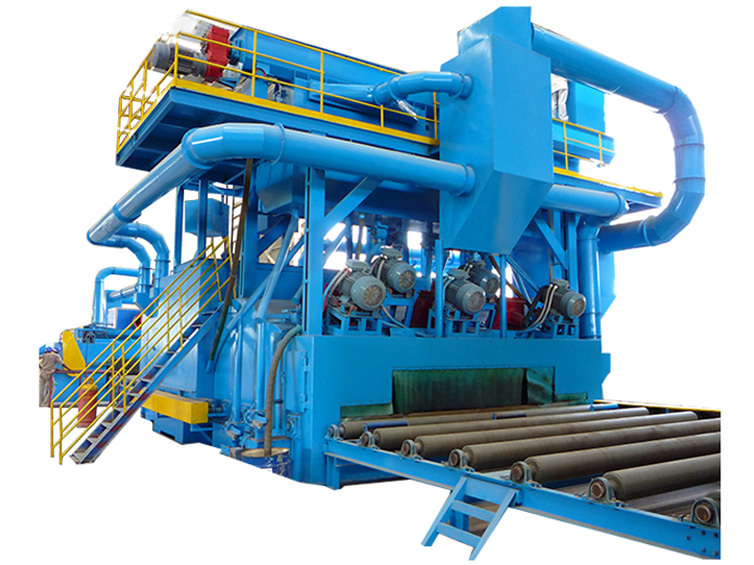

| Steel structure roller conveyor shot blasting machine | The steel structure roller conveyor shot blasting machine is a new type of special shot blasting cleaning equipment designed and manufactured according to user requirements. It is mainly used for cleaning steel structure parts. The workpiece can be cleaned by shot blasting, which can not only remove the rust on the surface of the workpiece, clean the welding slag on the structural parts, but also eliminate the welding stress of the workpiece, improve the fatigue strength of the workpiece, achieve the specified roughness value and hardness, and ultimately achieve the purpose of improving the surface and internal quality of the entire workpiece. | The steel structure roller conveyor shot blasting machine is mainly composed of shot blasting chamber, sealing chamber, purge sealing chamber, roller conveying system, shot blasting machine assembly, separator, elevator, screw conveyor, shot blowing system, shot collecting hopper, dust removal system, electrical system, air control system, etc. | Workpieces to be processed: Length: 12000mm Width: 2400mm Height: 400 mm Workpiece conveying speed: 0.5-4m/min First addition of shot: 8000 kg Shot circulation: 90t/h Equipment power: ~175kW |

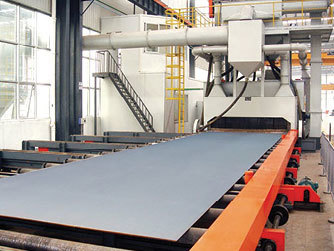

| Steel plate roller conveyor shot blasting machine | The steel plate roller conveyor shot blasting machine is a new type of special shot blasting equipment designed and manufactured according to user requirements. It is used to clean steel plates and other workpieces. Through shot blasting, not only can the rust and scale on the surface of the workpiece be removed, but also the welding stress of the workpiece can be reduced and the fatigue strength of the workpiece can be improved. The adhesion of the paint film when the workpiece is sprayed with paint can be increased, and ultimately the purpose of improving the surface and internal quality of the entire workpiece can be achieved. | The steel plate roller-through shot blasting machine is mainly composed of a shot blasting chamber, a cleaning chamber, a soot blowing chamber, a roller conveying system, a shot blasting machine assembly, a cleaning mechanism, a soot blowing mechanism, a separator, an elevator, a screw conveyor, a maintenance platform, a shot supply system, a dust removal system, an electrical system, and a pneumatic control system. | Processing steel plate: Length: ≤8000mm Width: ≤2500mm Height: 6～23 mm Workpiece conveying speed: 0.5-4 m/min First addition of shot: 8000 kg Shot circulation: 90t/h Equipment power: ~165kW |
